| A. |
Electrical Performance
|
| |
1. |
Supply Voltage :
(Vcc) |
Standard 4.5 VDC to 24 VDC. |
 |
| |
Optional : |
5.5VDC to 36VDC. |
|
| |
2. |

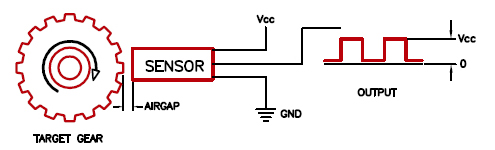

Target : |
Ferrous material, single tooth or slot To 48 D.P |
|
| |
3. |
Airgap : |
0.005" To 0.120" (0.126mm to 3.045mm) |
|
| |
4. |
Speed Range : |
0- 15KHZ |
|
| |
5. |
Output Signal : |
NPN Open collector with 4.7k ohms internal pull-up Resistor (Digital). |
|
| |
Optional : |
No pull-up resistor. |
|
| |
6. |
Output Voltage : |
Low= 400mV Max
High= Follows Vcc |
|
| |
Optional : |
Low= 400 mV Max
High= 5 VDC |
|
| |
7. |
Output Current :
(I sink) |
20mA continuous operation |
|
| |
Optional : |
50mA |
|
| |
8. |
Output Duty Cycle : |
50% ±15% with equal size gear teeth. |
|
| |
9. |
Protection : |
Reverse Polarity. |
|
| |
Optional : |
Input Transient Protection, Short circuit protection. |
|
| |
10. |
Operating Temperature : |
-4° F to +221° F (-20°C to 105°C) |
|
| |
Optional : |
-40° F to +302° F (-40°C to 150°C) |
|
| B. |
Application
|
|
| |
Automotive |
Engine Speed Measurement
Dynamometer
Crankshaft
GearBox Speed Sensor
Electric speedometer
Flywheel speed sensing |
|
| |
Aerospace |
|
|
| |
Electric Power Generator |
Motor Speed Measurement
Turbine Flow Measurement |
|
| |
Exercise Equipments |
Motor speed sensor |
|
| |
Flow Meter |
|
|
| |
Locomotive |
Crank shaft |
|
| |
Machinery |
|
|
| |
Tachometer |
|
|
| |
Off-Highway |
|
|
| C. |
Features and Benefits |
|
| |
True Zero Speed Sensing.
Constant Amplitude square wave (Digital) output
Reverse polarity protected
Wide Speed Range
Customized for most environment
Not sensitive to the orientation
|
