 Canister (Column) load cells have been designed for compression measurements.

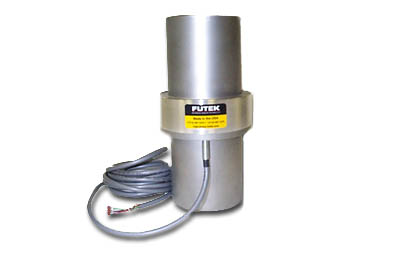

Futek L2821 female threaded canister load cell has a capacity of 125,000 lbs and is made of stainless steel.
Futek has other canister load cell models please contact us for details:
| Capacity |
· |
125000 lb |
| Thread Size |
· |
1 1/2-12 |
| Material |
· |
17-4 Ph S.S. |
| Resistance |
· |
350 ohms |
| Rated Output (R.O.) |
· |
2 mV/V nom. |
| Safe Overload |
· |
150% of R.O. |
| Excitation (VDC or VAC) |
· |
20 max., 10 test |
| Bridge Resistance |
· |
350 ohms nom. |
| Non-Linearity |
· |
0.25% of R.O. |
| Hysteresis |
· |
0.25% of R.O. |
| Nonrepeatability |
· |
0.1% of R.O. |
| Creep |
· |
of Load |
| Zero Balance |
· |
1% of R.O. |
| Temp. Shift Zero |
· |
± 0.005% of R.O./ºF |
| Temp. Shift Span |
· |
± 0.005% of R.O./ºF |
| Compensated Temp. |
· |
60 to 160 ºF |
| Operating Temp. |
· |
-45 to 200 ºF |
| *Actual level of accuracy
depends on mounting
method
|
|
 |
| .Option Package
|
|
- Futek Standard -
|
| · |
Cable: 24 Awg 6 Conductor Pvc Cable (10 ft 0 in) |
|
 |
|
| L2821 Female Threaded Load Cell Wiring Code Diagram |
|
| FP10335-00126-C
. |
| Wiring Code |
|
| + Excitation |
· |
Red |
| + Sense |
· |
Orange |
| + Signal |
· |
Green |
| - Signal |
· |
White |
| - Sense |
· |
Blue |
| - Excitation |
· |
Black |
|
|
|
|
|
|
