 Pancake load cells are low profile, high precision, tension or compression load cells with eccentric load capability.

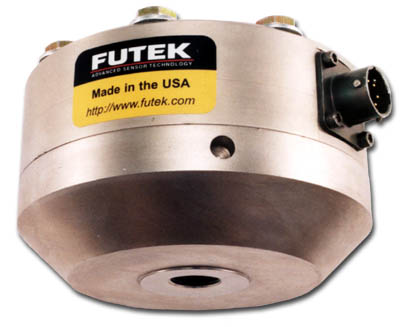

Futek pancake load cells model L2901 is shown with 300 lb capacity. For other capacities up to 250000 lb depending on thread size please contact us.
Futek offers other pancake load cells, for more information on models offered please contact us.
-
L1665 - capacity 10 lb, 25 lb, 50 lb, 100 lb, 250 lb, 500 lb
-
L1668 - capacity 50 lb, 100, lb, 250 lb
-
L2900 - capacity 300 lb, 500 lb, 1000 lb, 2000 lb, 3000 lb, 5000 lb, 10000 lb
-
L2901 - capacity 300 lb to 250000 lb depending on thread size
-
L2920 - capacity 250 lb, 500 lb, 1000 lb, 2000 lb, 3000 lb, 5000 lb
-
L2930 - capacity 250 lb, 500 lb, 1000 lb, 2000 lb, 3000 lb, 5000 lb
| Capacity |
· |
300 lb - Contact Us for Other Capacities |
| Thread Size |
· |
5/8-18 - Contact Us for Other Threads |
| Material |
· |
Aluminum |
| Resistance |
· |
700 ohms |
| Rated Output (R.O.) |
· |
2 mV/V nom. |
| Safe Overload |
· |
150% of R.O. |
| Excitation (VDC or VAC) |
· |
20 max., 10 test |
| Bridge Resistance |
· |
700 ohms nom. |
| Non-Linearity |
· |
0.05% of R.O. |
| Hysteresis |
· |
0.05% of R.O. |
| Nonrepeatability |
· |
0.02% of R.O. |
| Creep |
· |
0.02% of Load |
| Zero Balance |
· |
1% of R.O. |
| Temp. Shift Zero |
· |
± 0.001% of R.O./ºF |
| Temp. Shift Span |
· |
± 0.002% of R.O./ºF |
| Compensated Temp. |
· |
60 to 160 ºF |
| Operating Temp. |
· |
-60 to 200 ºF |
| *Actual level of accuracy
depends on mounting
method
|
|
 |
| .Option Package
|
|
- Futek Standard -
|
| · |
Connector: Bendix Receptacle, Pt02a-10-6p |
|
 |
|
| L2901 Pancake Load Cell W/ Tension Base Plate Wiring Code Diagram
|
|
| FP11935-00248-C
.
|
| Wiring Code
|
|
| + Excitation |
· |
Red |
| + Sense |
· |
Orange
|
| + Signal |
· |
Green |
| - Signal |
· |
White |
| - Sense |
· |
Blue |
| - Excitation |
· |
Black |
|
|
|
|
|
|
