Hall-Effect Quadratur Sensor (HQ)

Product Data Sheet

Hall-Effect Quadratur Sensor (HQ)

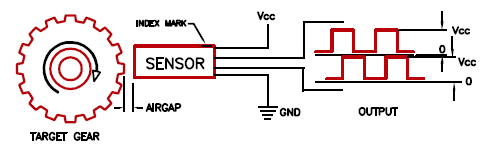

Non-contact magnetic sensors that measure the distortion of magnetic field created by a ferrous target. These sensors provide two 90º out of phase digital outputs to record speed and direction. When the target wheel or gear is rotating clockwise, the output signal # 1 leads output signal # 2, and when the target is rotating counter clockwise, the output signal # 2 leads output signal # 1. Both output signals will be 50% duty cycle with proper alignment of sensor and target gear.

A.	Electrical Performance
	1.	Supply Voltage : (Vcc)	Standard 4.5 VDC to 24 VDC.
			Optional :	5.5VDC to 36VDC.
	2.	Target :	Ferrous material, single tooth or slot To 48 D.P
	3.	Airgap :	0.005" To 0.120" (0.126mm to 3.045mm)
	4.	Speed Range :	0- 15KHZ
	5.	Output Signal :	NPN Open collector with 4.7k ohms internal pull-up Resistor (Digital).
			Optional :	No pull-up resistor.
	6.	Output Voltage :	Low= 400mV Max at 20mA Sink current High= Follows Vcc
			Optional :	Low= 400 mV Max High= 5.5 VDC
	7.	Quadrature Phasing :	90° ± 20°
	8.	Output Current : (I sink)	20mA continuous operation
			Optional :	50mA
	9.	Output Duty Cycle :	50% ±15% with equal size gear teeth.
	10.	Protection :	Reverse Polarity, -50 V Reverse, Load Dump: 60V
			Optional :	Input Transient Protection
	11.	Operating Temperature :	-4° F to +221° F (-20°C to 105°C)
			Optional :	-40° F to +257° F (-40°C to 125°C)
B.	Application
	Automotive		Engine speed measurement Dynamometer Crankshaft Gear box speed sensor
	Power generator		Motor speed measurement Turbine flow measurement
	Transmission
	Exercise equipments
	Flow meter
	Off-Highway
C.	Features and Benefits
	True zero speed and direction (Forward, Reverse) sensing. Constant amplitude square wave output Wide speed Range Customize for most environment
