Hall-Effect Linear Position Sensor (HL)

Product Data Sheet

Hall-Effect Linear Position Sensor (HL)

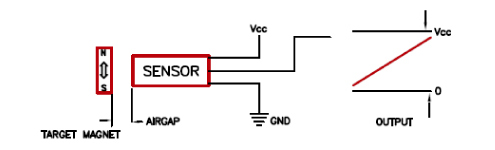

Non- contact magnetic sensors that are designed to respond to a wide range of positive or negative magnetic fields and can sense relatively small changes in a magnetic field. By having magnet as a target, this unit produces a Ratiometric Rail-To-Rail linear output. It also has an internal amplifier to boost the output to a higher level. These sensors are ideal for applications such as magnetic flux measurement, displacement, and linear output rotary measurement.

A.	Electrical Performance
	1.	Supply Voltage : (Vcc)	Standard 4.5 VDC to 6 VDC Max.
			Optional :	5.5VDC to 36VDC.
	2.	Target :	Permanent magnet, with customer long Range Sensing
	3.	Airgap :	0.005" To 0.750" (0.126mm to 19.03mm)
	4.	Output Voltage at 0 Gauss :	2.5 V TYP.
	5.	Sensitivity :	1.30 mV/G
	7.	Supply Current :	14 mA Max
	8.	Output Current :	10 mA
	9.	Bandwidth :	23KHZ Typ.
	10.	Operating Temperature :	-4°F to +185°F (-20°C to +85°C)
			Optional :	-40°F to +302°F (-40°C to 150°C)
B.	Application
	Magnetic flux measurement
	Displacement
	Linear output rotary measurement
C.	Features and Benefits
	Customize for most environments

Product List
HL Series
