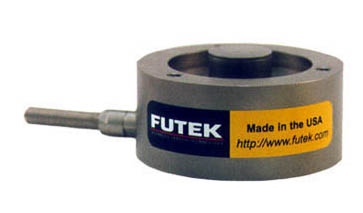

L16010 Miniature Load Button Load Cell With Threaded Mounting Holes High-Resolution Image

Futek L16010 miniature load button load cells with threaded mounting holes high-resolution image has been designed for space limited applications.

Futek L16010 miniature load button load cells are a subminiature load button load cell for compression.

It has 25, 50 or 100 lb., capacity, 0.38" OD and is made of stainless steel with a vertical cable exit.

Below we show the 25 lb capacity stats, for other 50, 100 lb., capacities and models please contact us.


  • L16020     - 100 lb, 250 lb, 500 lb, 750 lb, 1000 lb, 2000 lb, 2500 lb     capacity


  • L16030     - 3000 lb, 5000 lb, 10000 lb capacity


  • L16040     - 15000 lb, 20000 lb, 30000 lb capacity


  • L1605 - 25 lb to 50000 lb capacity

  • L16050     - 50000 lb capacity


  • L1610 (LLB200)     - 10 lb, 25 lb, 50 lb capacity


  • L1611     - 10 lb, 25 lb, 50 lb capacity


  • L1613 - 10 lb, 25 lb, 50 lb capacity


  • L1614     - 10 lb, 25 lb, 50 lb capacity

  • L1615 - 100 lb, 150 lb, 250 lb capacity


  • L1630     - 10 lb, 25 lb, 50 lb, 100 lb, 150 lb, 250 lb, 500 lb, 1000 lb capacity


  • L1635     - 10 lb, 25 lb, 50 lb, 100 lb, 150 lb, 250 lb, 500 lb, 1000 lb capacity


  • L1800     - 1 lb capacity


  • Q07474     - 30000 lb, 50000 lb, 100000 lb capacity

  Capacity
·
 25 lb - Contact Us for Other Capacities
  Material
·
 17-4 Ph S.S.
  Resistance
·
 350 ohms
  Rated Output (R.O.)
·
 2 mV/V nom.
  Safe Overload
·
 150% of R.O.
  Excitation (VDC or VAC)
·
 18 max., 10 VDC test
  Bridge Resistance
·
 350 ohms nom.
  Non-Linearity
·
 ± 0.5% of R.O.
  Hysteresis
·
 ± 0.5% of R.O.
  Nonrepeatability
·
 ± 0.1% of R.O.
  Creep
·
 ± % of Load
  Temp. Shift Zero
·
 ± 0.01% of R.O./ºF
  Temp. Shift Span
·
 ± 0.02% of R.O./ºF
  Compensated Temp.
·
 60 to 160 ºF
  Operating Temp.
·
 -60 to 200 ºF

  *Actual level of accuracy
  depends on mounting
  method



.Option Package

- Futek Standard -
· Cable: 29 Awg 4 Conductor Spiral Shielded Teflon Cable (10 ft 0 in)

L16010 Miniature Load Button With Threaded Mounting Holes Wiring Code Diagram

FP11653-00374-C
.

Wiring Code
  + Excitation
·
 Black
  + Sense
·

- -
  + Signal
·
 Green
  - Signal
·
 White
  - Sense
·
 - -
  - Excitation
·
 Red
